HI-SCAN 6040

Dual view X-ray inspection for hand luggage

Feature Highlights
• Compact footprint
• Steel penetration of 35mm
• Flexible design for easier installation
• Dual view technology
• Operator-friendly interface

Product Information

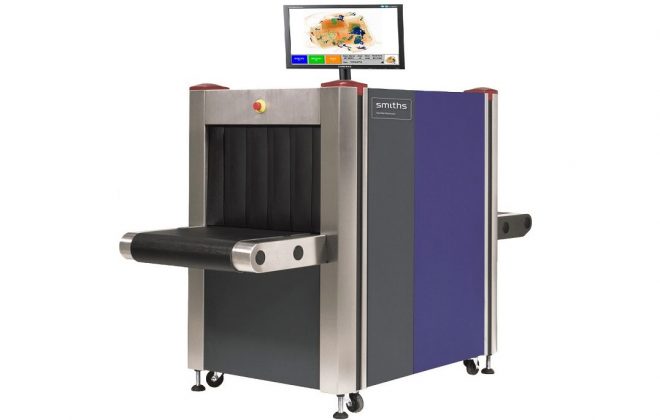

HI-SCAN 6040-2is HR

An advanced dual-view X-ray inspection system for the automatic detection of solid and
liquid explosives in personal belongings and cabin baggage. The HI-SCAN 6040-2is HR has
an ergonomic design that makes it easy for the operator to identify threats on screen.
Approved for ECAC EDS CB C1 means that it can be used for the screening of checked
cabin baggage. It also meets EU legislation for LEDS Standard 2 and 3 Type C – an
extended approval as a Liquid Explosive Detection System (LEDS).
Using proven X-ray technology, it generates reliable, high-quality dual-view images, and it
is also available in standard resolution (not approved for aviation cabin baggage).
Though primarily used for airport screening, its compact footprint makes it suitable for
locations with space constraints such as hotels and government buildings.

Technical Specification:
Dimensions
2,340 (L) x 1,314 (W) x 1,372 (H) [mm]
92.0 (L) x 51.7 (W) x 54.0 (H) [in]
(H)*Without monitors on top of the unit
Maximum object size
615 (W) x 410 (H) [mm] 24.2 (W) x 16.1 (H) [in]
Weight
Approx. 820kg
Approx. 1,808 lbs
